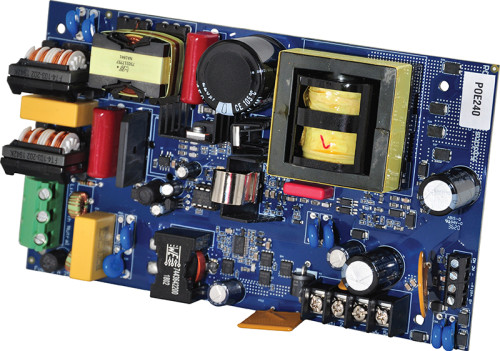

POE240

56VDC/240W Power Supply/Charger Board.

Altronix POE240 provides 240W for NetWay Spectrum switches with 1Gb SFP ports. It converts 115VAC, 60Hz or 230VAC, 50/60Hz input into a 56VDC at 4.5A of continuous supply current (see specifications). It also features a built-in charger for LiFePO4 (Lithium Iron Phosphate), sealed lead acid or gel type batteries.

  • Input
    • Voltage: Auto-ranging 100-265VAC, 50/60 Hz, 2.5A.
  • Output
    • Voltage Range: 56VDC/240W
    • Current: 6.4A continuous supply current
    • Maximum Power: 240W total power. (refer to operating temperature)
    • Integral surge protection
  • Battery Charging
    • Type: LiFePO4 (Lithium Iron Phosphate) or sealed lead acid or gel type batteries.
    • Failover: Upon AC loss, instantaneous
    • Charging Circuit: 24VDC, 0.75A
    • (Batteries are sold separately).
  • Temperature
      • Operating Temperature (De-Rating):
        • 240W: – 30ºC to 55ºC (– 22ºF to 131F).
        • 180W: – 30ºC to 65ºC (– 22ºF to 149ºF).
        • 150W: – 30ºC to 75ºC (– 22ºF to 167ºF).
    • Storage Temperature: – 30ºC to 85ºC (– 22ºF to 185ºF).
    • Relative Humidity: 85% +/–5%.
    • BTU/Hr. (approx.): 61 BTU/Hr.
Dimensions (approximate):
  • 7.75"W x 4.5"L x 1.375"H (196.9 mm W x 114.3 mm L x 34.9 mm H).
Weights (approximate):
  • Product Weight: 0.7 Lbs. (0.32 kg).
  • Shipping Weight: 1.1 Lbs. (0.5 kg).
