NetWay4E1BTX

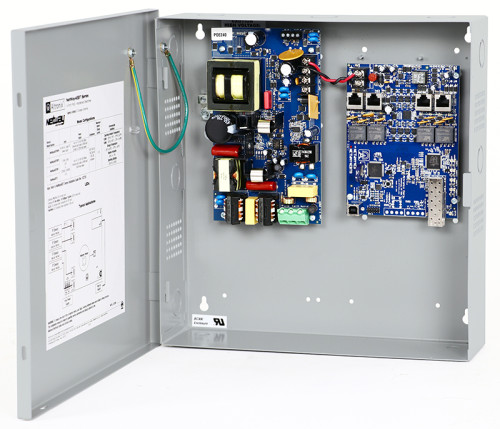

4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger, NEMA1 rated Indoor enclosure

Altronix NetWay4E1BTX supports up to 90W per port (240W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with one (1) 1Gb SFP port to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWay4E1BTX accommodates single/multi-mode fiber to deliver data from NetWay Spectrum head-end media converters/injectors.

Specifications

  • 4-port PoE+ Hardened Switch (NetWay4E1BTB)
    • Input
      • Voltage: 56VDC from POE240
    • Power Output
        • Maximum Power:
          • Four (4) PoE ports rated at 90W each, 240W total power max.
          • IEEE 802.3af (15W), IEEE 802.3at (30W), IEEE 802.3bt (90W) compliant
          • Integral surge protection
    • Fiber Port
      • One (1) Gigabit SFP port.
    • Ethernet Ports
      • Four (4) 10/100/1000 Mbps ports
      • Connectivity: RJ45, auto-crossover
      • Wire type: 4-pair CAT5e or higher structured cable
      • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
    • Indicators (LED)
      • Individual PoE On LEDs for each port.
      • Individual IP Link status, 10/100Base-T/active LEDs for each port.
      • ALOS LED indicates fiber connection for SFP port.
      • Heartbeat LED indicates proper operation of the unit.
    • Power Supply/Charger (POE240):
      • Input:
        • Voltage: 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A
        • Input Fuse: 5A/250V
      • Output
        • Voltage: 56VDC/240W
        • Current: 6.4A continuous supply current
        • Maximum Power: 240W total power (refer to operating temperature)
        • Integral surge protection.
      • Battery Charging
        • Type: LiFePO4 (Lithium Iron Phosphate) or sealed lead acid or gel type
        • Failover: Upon AC loss, instantaneous.
        • Charging Circuit: 24VDC, 0.75A
        • (Batteries are sold separately).
      • Temperature
          • Operating:
            • 240W: – 30ºC to 55ºC (– 22ºF to 131ºF)
            • 180W: – 30ºC to 65ºC (– 22ºF to 149ºF)
            • 150W: – 30ºC to 75ºC (– 22ºF to 167ºF)
          • Storage:
            • – 30ºC to 85ºC (– 22ºF to 185ºF)
          • Relative Humidity:
            • Relative Humidity: 85% +/– 5%
          • BTU/Hr.(approx.):
            • 122 BTU/Hr.
          • Operating Altitude:
            • – 304.8 to 2,000m

      Agency Listings


      CE Compliant

      Accessories

      Name Description
      P1MM Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver
      P1SM10 Small Form-Factor Pluggable (SFP) Single Mode Transceiver
      P1AB2K Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit
      P1GCE Small Form-Factor Pluggable (SFP) Copper Transceiver
      NetWaySP1A PoE Powered Ethernet to Fiber Media Converter/Repeater.

      Similar Products

      Name Description
      NetWay4E1BTWPX 4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure.
      NetWay4E1BTWPN 4-port Hardened 802.3bt 4PPoE Switch (uses external power supply). - NEMA4/4X, IP66 rated Outdoor enclosure.
      NetWay4E1BTWP 4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure.
      NetWay4E1BTPL 4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger; Backplane version.
      NetWay4E1BTB 4-port Hardened 4PPoE (802.3bt) Switch

      Dimensions & Weight

      Enclosure:
      • Wall mount enclosure for indoor use.
      • Dimensions 12.5"W x 13"H x 3.25"D (317.5 mm W x 330.2 mm H x 82.6 mm D).
      • 1/2" and 3/4" combination knockouts.
      Weights (approximate):
      • Product Weigtht: 6.65 Lbs. (3.02 kg).
      • Shipping Weigtht: 7.55 Lbs. (3.42 kg).
